Frequency Band
5 GHz
Wireless Rate
up to 867 Mbps
Wireless Standards
IEEE 802.11a/n/ac with iMAX TDMA
Official data verified
Official specifications
- Product

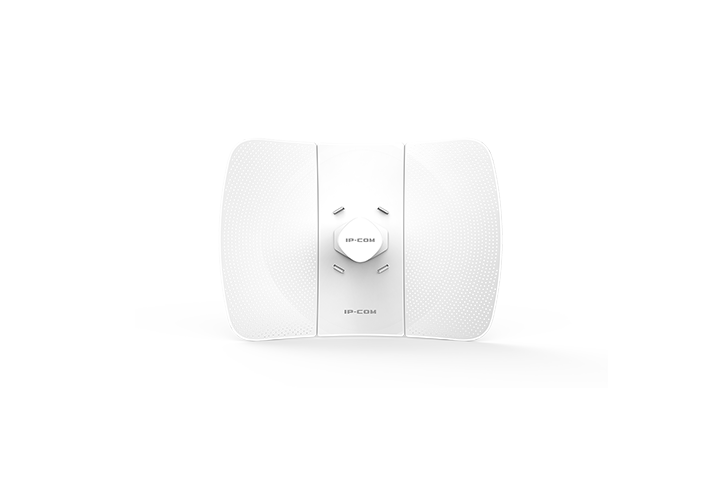

- 5 GHz Gigabit outdoor wireless bridge for up to 25 km links
- Model
- CPE15
- Frequency Band
- 5 GHz
- Wireless Rate
- up to 867 Mbps
- Wireless Standards
- IEEE 802.11a/n/ac with iMAX TDMA
- Ethernet Interfaces
- 1 × 10/100/1000 Mbps LAN port
- Antenna
- integrated 23 dBi dual-polarized directional antenna; 10° horizontal and vertical beamwidth
- Transmission Distance
- up to 25 km point-to-point
- Ingress Protection
- IP65
- Power Supply
- 24 V / 0.5 A passive PoE; 21-25 V input; up to 60 m over Cat 5e or better
- Power Consumption
- 7.5 W
- Lightning Protection
- 6 kV Ethernet port protection
- Operating Modes
- AP, client, wireless WAN, P2MP, repeater, and router
- Operating conditions
- -30 °C to 60 °C; 10% to 90% RH, non-condensing
