Official data verified
DS-2CD1343G2-LIU(2.8mm)(T)(O-STD)
Hikvision
Contact support for the sales price
Image Sensor
1/3" Progressive Scan CMOS
Max resolution
2560 × 1440
Minimum illumination
Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Official data verified
Official specifications
- Product

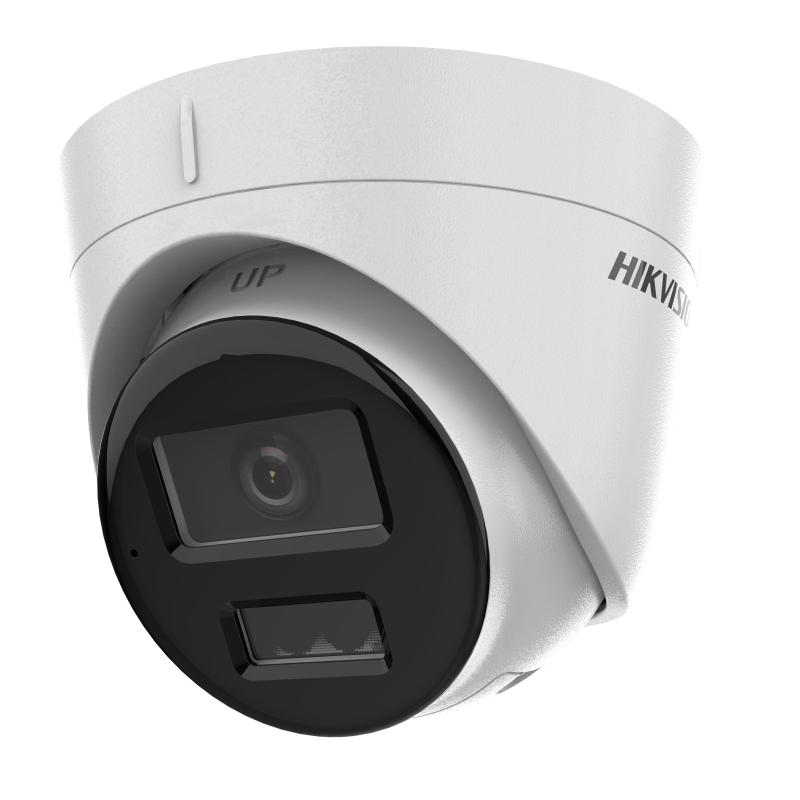

- 4 MP Smart Hybrid Light Fixed Turret Network Camera
- Model
- DS-2CD1343G2-LIU(2.8mm)(T)(O-STD)
- Image Sensor
- 1/3" Progressive Scan CMOS
- Max resolution
- 2560 × 1440
- Minimum illumination
- Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Lens Type
- Fixed focal lens, 2.8 mm
- Focal Length & FOV
- 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
- Supplement Light Type
- IR,White Light
- Supplement Light Range
- Up to 30 m
- Wide Dynamic Range (WDR)
- 120 dB
- Built-in Microphone
- Yes
- Power
- 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
- Dimensions
- Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
- Weight
- Approx. 340 g (0.7 lb.)
- Protection
- IP67: IEC 60529-2013
