DS-2CD1T45-LA(4mm/6mm)
Hikvision
Contact support for the sales price
Image Sensor
1/3 inch Progressive Scan CMOS
Max resolution
2560 × 1440 @ 25 fps
Minimum illumination
Color 0.005 Lux @ (F1.2, AGC ON); 0 Lux with IR
Official data verified
Official specifications
- Product

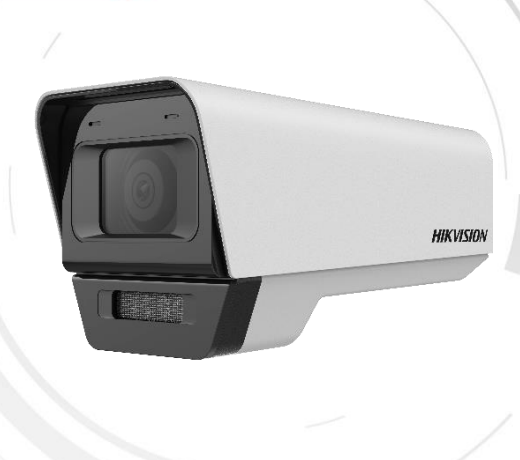

- 4 MP Smart Hybrid Light Bullet Network Camera
- Model
- DS-2CD1T45-LA(4mm/6mm)
- Image Sensor
- 1/3 inch Progressive Scan CMOS
- Max resolution
- 2560 × 1440 @ 25 fps
- Minimum illumination
- Color 0.005 Lux @ (F1.2, AGC ON); 0 Lux with IR
- Lens Options
- 4 mm and 6 mm fixed lens
- 4 mm Field of View
- Horizontal 79°, vertical 42°, diagonal 93°
- 6 mm Field of View
- Horizontal 49°, vertical 26°, diagonal 57°
- Aperture
- F1.6
- Supplement light
- Switchable warm light and infrared
- Supplement Light Range
- Infrared up to 50 m; warm light up to 30 m
- Video Compression
- Main stream H.265/H.264; sub-stream H.265/H.264/MJPEG
- Built-in Microphone
- Yes
- Network Interface
- 1 × RJ45 10/100 Mbps
- Power
- 12 VDC, max. 6.5 W; PoE IEEE 802.3af, max. 8 W
- Dimensions
- 108.1 × 111.4 × 216.7 mm
- Weight
- 700 g
- Protection
- IP66
