Official data verified
DS-2CD2387G2P-LSU/SL
Hikvision
Contact support for the sales price
Image Sensor
2 × 1/1.8" Progressive Scan CMOS
Max resolution
5120 × 1440
Minimum illumination
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Official data verified
Official specifications
- Product

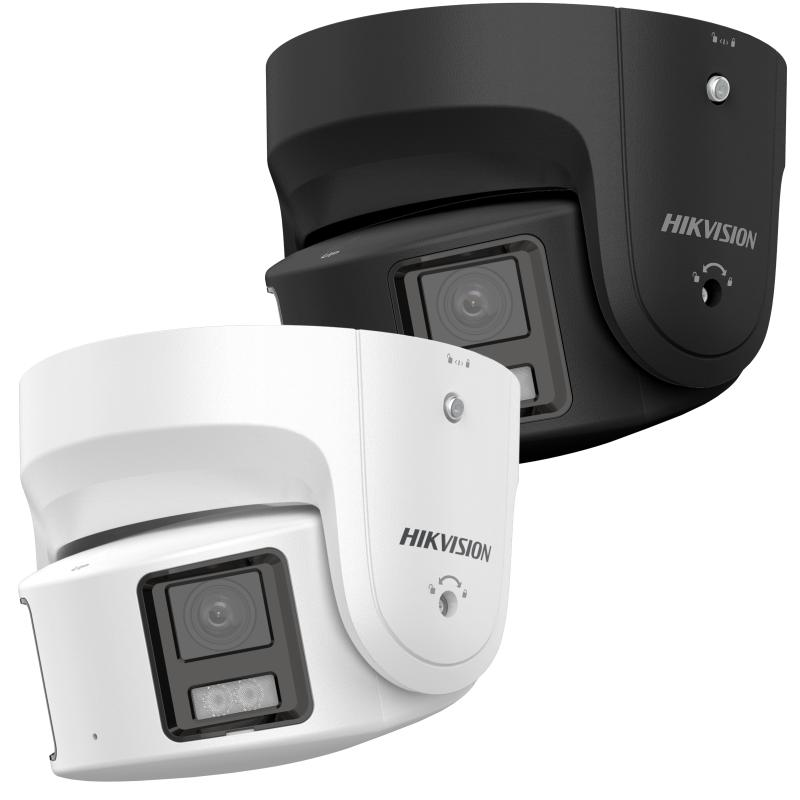

- 8 MP Panoramic ColorVu Fixed Turret Network Camera
- Model
- DS-2CD2387G2P-LSU/SL
- Image Sensor
- 2 × 1/1.8" Progressive Scan CMOS
- Max resolution
- 5120 × 1440
- Minimum illumination
- Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Lens Type
- Fixed focal lens, Dual lens: 4 mm
- Focal Length & FOV
- 4 mm, horizontal FOV: 180°, vertical FOV: 44°
- Supplement Light Type
- White Light
- Supplement Light Range
- Up to 30 m
- Wide Dynamic Range (WDR)
- 130 dB
- On-Board Storage
- Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone
- Yes
- Power
- 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- Dimensions
- Ø155 mm × 155.3 mm (Ø6.1" × 6.1")
- Weight
- Approx. 1110 g (2.4 lb.)
- Protection
- IP67: IEC 60529-2013
