Image Sensor
1/3" Progressive Scan CMOS
Max resolution
2560 × 1440
Minimum illumination
Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Official specifications
- Product

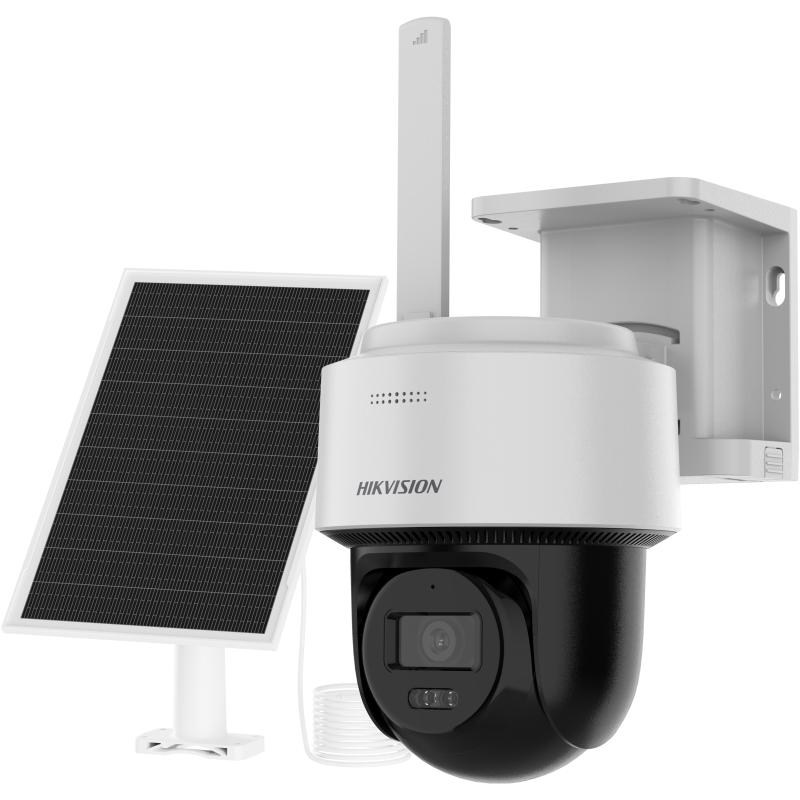

- 4MP 24/7 Solar 4G PT Camera
- Model
- DS-2CFSP4/4G(2.8mm)(O-STD)
- Image Sensor
- 1/3" Progressive Scan CMOS
- Max resolution
- 2560 × 1440
- Minimum illumination
- Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Lens Type
- Fixed focal lens, 2.8 mm
- Focal Length & FOV
- 2.8 mm, horizontal FOV 95.7°, vertical FOV 51.7°, diagonal FOV 113.7°
- Supplement Light Type
- IR,White Light
- Supplement Light Range
- Up to 30 m
- Wide Dynamic Range (WDR)
- Digital WDR
- On-Board Storage
- Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone
- 1 built-in microphone
- Power
- 12 V, 0.75 A
- Dimensions
- 208 mm × 131 mm × 282.7 mm (8.2" × 7.0" × 11.1")
- Weight
- Approx. 850 g (1.9 lb.)
- Protection
- IP66: IEC 60529-2013
