EOL on official site
DS-2DE2C400MW-DE(F0)(O-STD)(S7)
Hikvision
Ask support about stock or a replacement model
Image Sensor
1/3-inch Progressive Scan CMOS
Max resolution
2560 × 1440
Minimum illumination
Color: 0.005 Lux @(F1.2, AGC ON); B/W: 0 Lux with IR
Official data verified
Official specifications
- Product

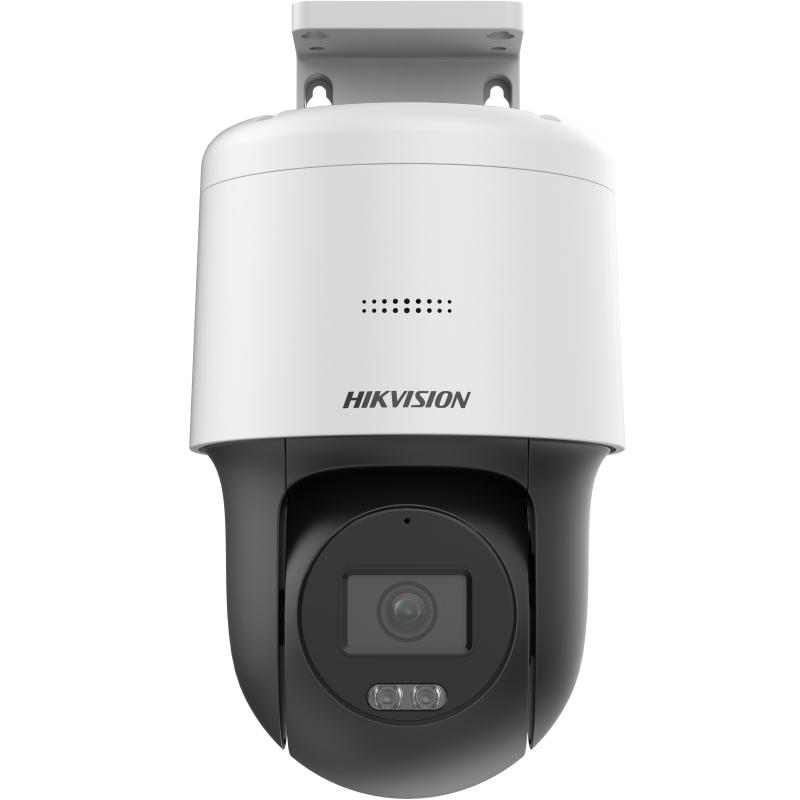

- 4 MP Fixed Outdoor Dual Light PT Network Camera
- Model
- DS-2DE2C400MW-DE(F0)(S7)
- Image Sensor
- 1/3-inch Progressive Scan CMOS
- Max resolution
- 2560 × 1440
- Minimum illumination
- Color: 0.005 Lux @(F1.2, AGC ON); B/W: 0 Lux with IR
- Focal Length
- 2.8 mm
- FOV
- horizontal 97°, vertical 52.3°, diagonal 114.3°
- Aperture
- F1.6
- Supplement Light Type
- IR and white light
- Supplement Light Range
- IR up to 30 m; white light up to 30 m
- Movement Range (Pan)
- 0° to 340°
- Movement Range (Tilt)
- -5° to 105°
- Pan Speed
- configurable from 4°/s to 21°/s
- Tilt Speed
- configurable from 4°/s to 19°/s
- Video Compression
- H.265, H.264, MJPEG
- Audio
- built-in microphone and speaker with environment noise filtering
- On-board Storage
- microSD/SDHC/SDXC card up to 256 GB
- Network Interface
- 1 RJ45 10M/100M self-adaptive Ethernet port
- Power
- 12 VDC, max. 9 W; PoE 802.3af, max. 10.8 W
- Operating Condition
- -30 °C to 40 °C with supplement light on; -30 °C to 50 °C with light off; humidity 95% or less
- Dimensions
- 162 mm × 120 mm × 234.2 mm
- Weight
- 700 g
- Protection
- IP65
