Official data verified
DS-2DE3A404IWG-E(O-STD)
Hikvision
Contact support for the sales price
Image Sensor
1/2.8" progressive scan CMOS
Max resolution
2560 × 1440
Minimum illumination
Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
Official data verified
Official specifications
- Product

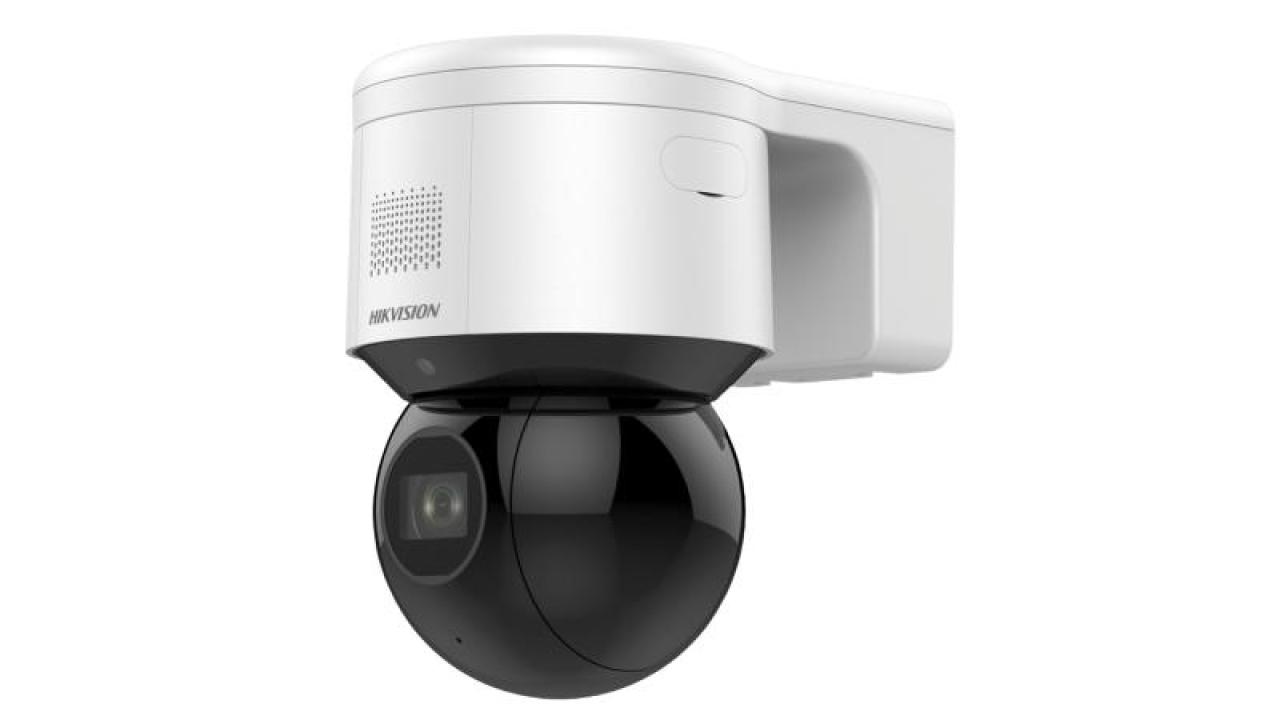

- 4 MP 4× IR Network PTZ Camera
- Model
- DS-2DE3A404IWG-E
- Image Sensor
- 1/2.8" progressive scan CMOS
- Max resolution
- 2560 × 1440
- Minimum illumination
- Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
- Zoom
- 4× optical, 16× digital
- Focal Length
- 2.8 mm to 12 mm
- FOV
- horizontal 96.7° to 31.6°; vertical 51.1° to 17.7°; diagonal 115.1° to 36.3°
- Focus
- auto, semi-auto, manual
- Aperture
- max. F1.5
- Supplement Light Range
- IR up to 50 m; white light up to 6 m
- Movement Range (Pan)
- 0° to 350°
- Movement Range (Tilt)
- 0° to 90°
- Pan Speed
- 0.1°/s to 60°/s; preset speed 60°/s
- Tilt Speed
- 0.1°/s to 50°/s; preset speed 50°/s
- Presets
- 300
- Video Compression
- H.265+/H.265/H.264+/H.264; MJPEG on sub and third streams
- Wide Dynamic Range
- 120 dB
- Perimeter Protection
- human and vehicle target classification
- Power
- 12 VDC, 3.33 A; PoE (802.3at)
- Power Consumption
- max. 14 W including IR and white light
- Operating Condition
- -30 °C to 65 °C; humidity 90% or less
- Dimensions
- 179.3 mm × 120.5 mm × 182 mm
- Weight
- approx. 1.125 kg
- Protection
- IP66, TVS 6000 V lightning, surge and voltage transient protection
- Available Model
- DS-2DE3A404IWG-E
