Official data verified
DS-2DE4415IW-DE(O-STD)(T5)
Hikvision
Contact support for the sales price
Max resolution
2560 × 1440
Image Sensor
1/2.8" progressive scan CMOS
Minimum illumination
Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON); 0 Lux with IR
Official data verified
Official specifications
- Product

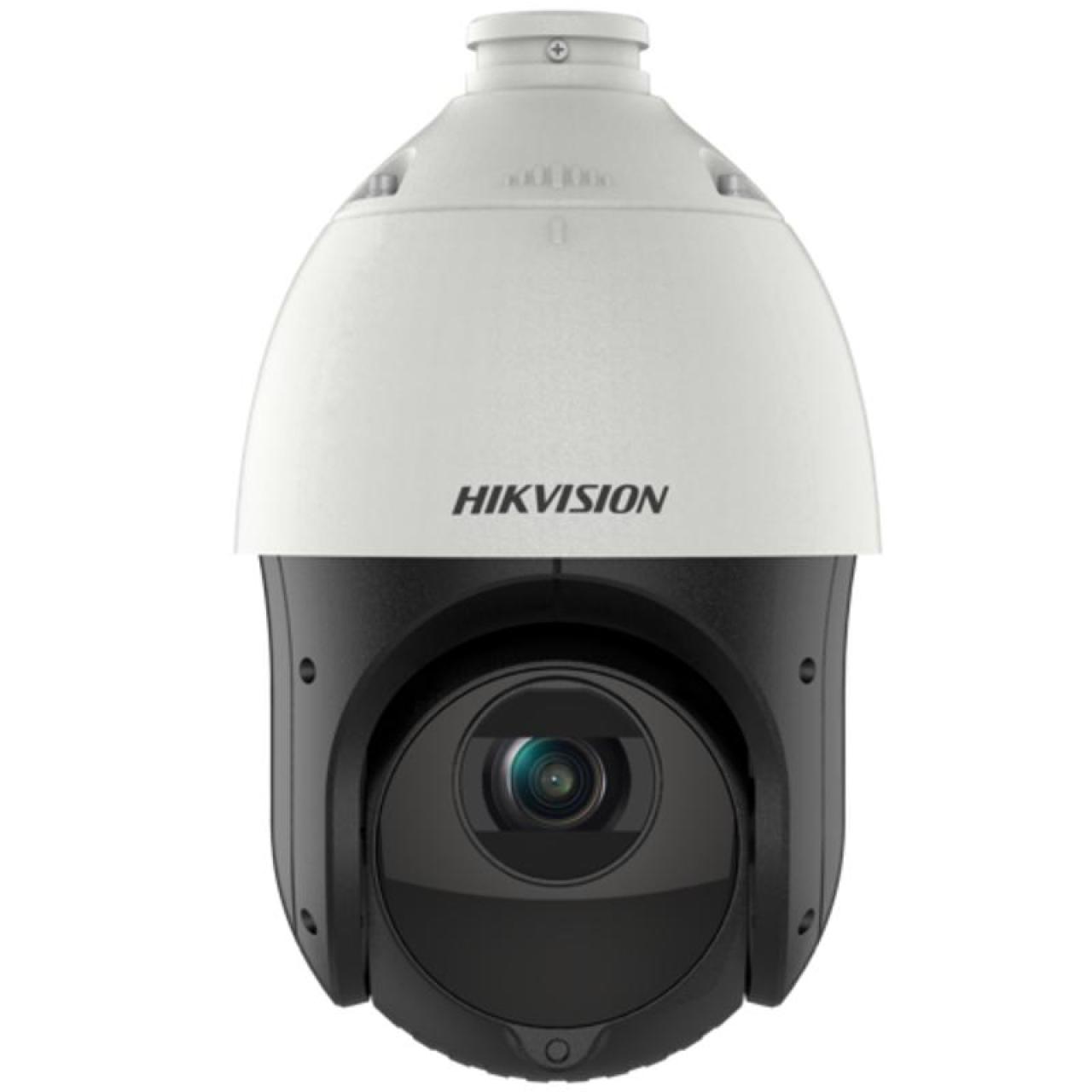

- 4 MP 15× Powered by DarkFighter IR AcuSense Network Speed Dome
- Model
- DS-2DE4415IW-DE(T5)
- Max resolution
- 2560 × 1440
- Image Sensor
- 1/2.8" progressive scan CMOS
- Minimum illumination
- Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON); 0 Lux with IR
- Zoom
- 15× optical, 16× digital
- Focal Length
- 5 mm to 75 mm
- FOV
- horizontal 55° to 4°; vertical 33° to 2.2°; diagonal 61.5° to 4.6°
- Focus
- auto, semi-auto, manual
- Aperture
- max. F1.6
- Supplement Light Range
- IR up to 100 m
- Movement Range (Pan)
- 360°
- Movement Range (Tilt)
- -15° to 90° with auto flip
- Pan Speed
- 0.1°/s to 80°/s; preset speed 80°/s
- Tilt Speed
- 0.1°/s to 80°/s; preset speed 80°/s
- Presets
- 300
- Video Compression
- H.265+/H.265/H.264+/H.264; MJPEG on sub and third streams
- Wide Dynamic Range
- 120 dB
- Face Capture
- detects up to 5 faces simultaneously
- Perimeter Protection
- line crossing, intrusion, region entrance and exiting with human and vehicle classification
- Network Storage
- NAS and ANR supported
- On-board Storage
- microSD/SDHC/SDXC up to 256 GB
- Power
- 12 VDC, max. 18 W; PoE (802.3at)
- Operating Condition
- -30 °C to 65 °C; humidity 90% or less
- Dimensions
- Ø 164.5 mm × 290 mm
- Weight
- approx. 2 kg
- Protection
- IP66, TVS 6000 V lightning, surge and voltage transient protection
- Available Model
- DS-2DE4415IW-DE(T5)
