Official data verified

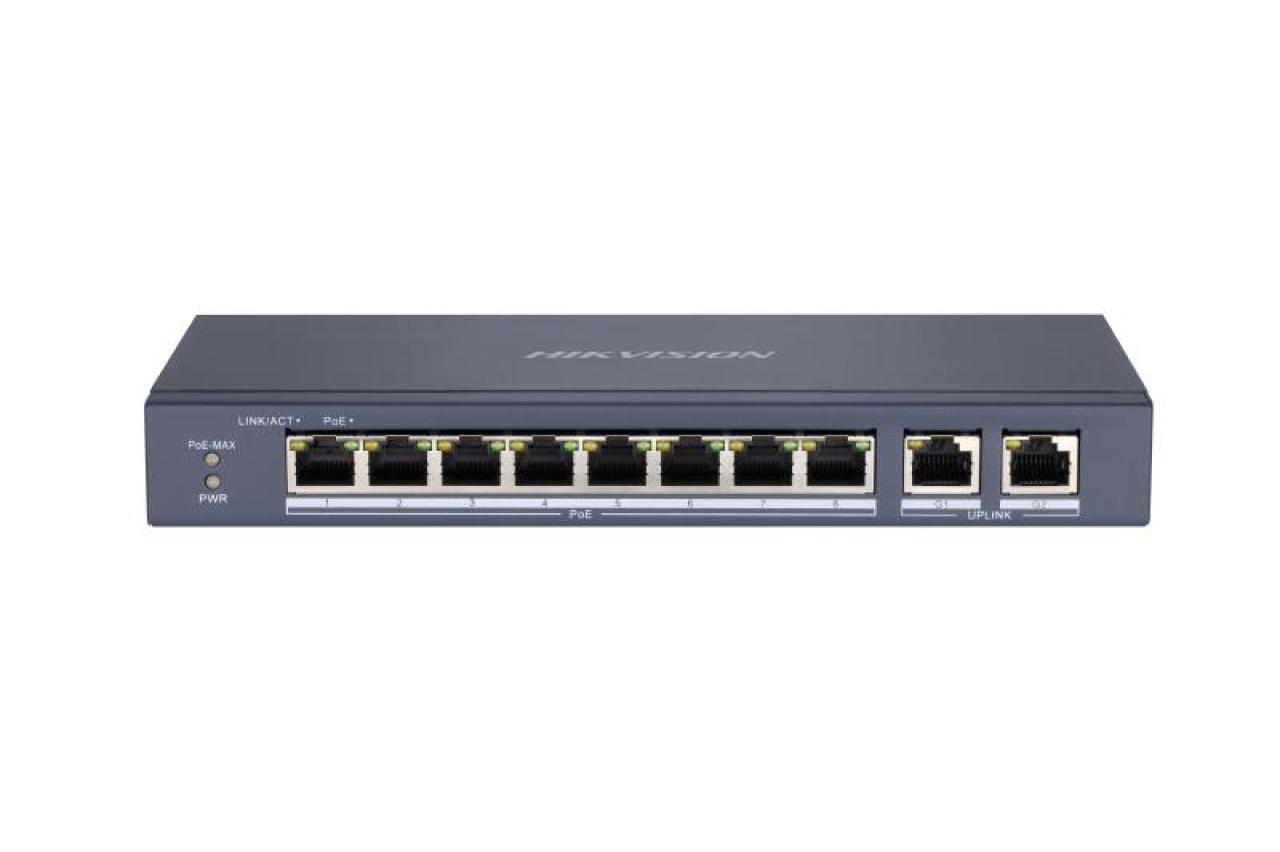

DS-3E0310P-E/M (O-STD)
Hikvision
Contact support for the sales price
Shell
metal material
Net Weight
0.555 kg (1.22 lb)
Gross Weight
1.20 kg (2.65 lb)
Official data verified
Official specifications
- Product
- 8 Port Fast Ethernet Unmanaged PoE Switch
- Model
- DS-3E0310P-E/M
- Shell
- metal material
- Net Weight
- 0.555 kg (1.22 lb)
- Gross Weight
- 1.20 kg (2.65 lb)
- Dimensions
- 217.6 mm × 103.35 mm × 27.8 mm
- Operating Temperature
- 0 °C to 40 °C
- Storage Temperature
- -40 °C to 85 °C
- Operating Humidity
- 5% to 95% (no condensation)
- Relative Humidity
- 5% to 95% (no condensation)
- Power Supply
- 48 VDC, 1.35 A
- Max. Power Consumption
- 65 W
- Power Consumption in Idle
- 5 W
- Installation Mode
- desk-mounted or wall-mounted
- Surge Protection
- 6 kV
- Ports
- 8 × 10/100 Mbps PoE ports, 2 × Gigabit RJ45 ports
- MAC address table
- 8 K
- Switching capacity
- 5.6 Gbps
- Packet forwarding rate
- 4.17 Mpps
- Internal Cache
- 4 Mbits
- PoE Standard
- IEEE 802.3af; IEEE 802.3at
- PoE Power Pin
- 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port
- ports 1 to 8
- Max. Port Power
- 30 W
- PoE Power Budget
- 60 W
- Long Range
- ports 1 to 8, up to 300 m
- Available Model
- DS-3E0310P-E/M
