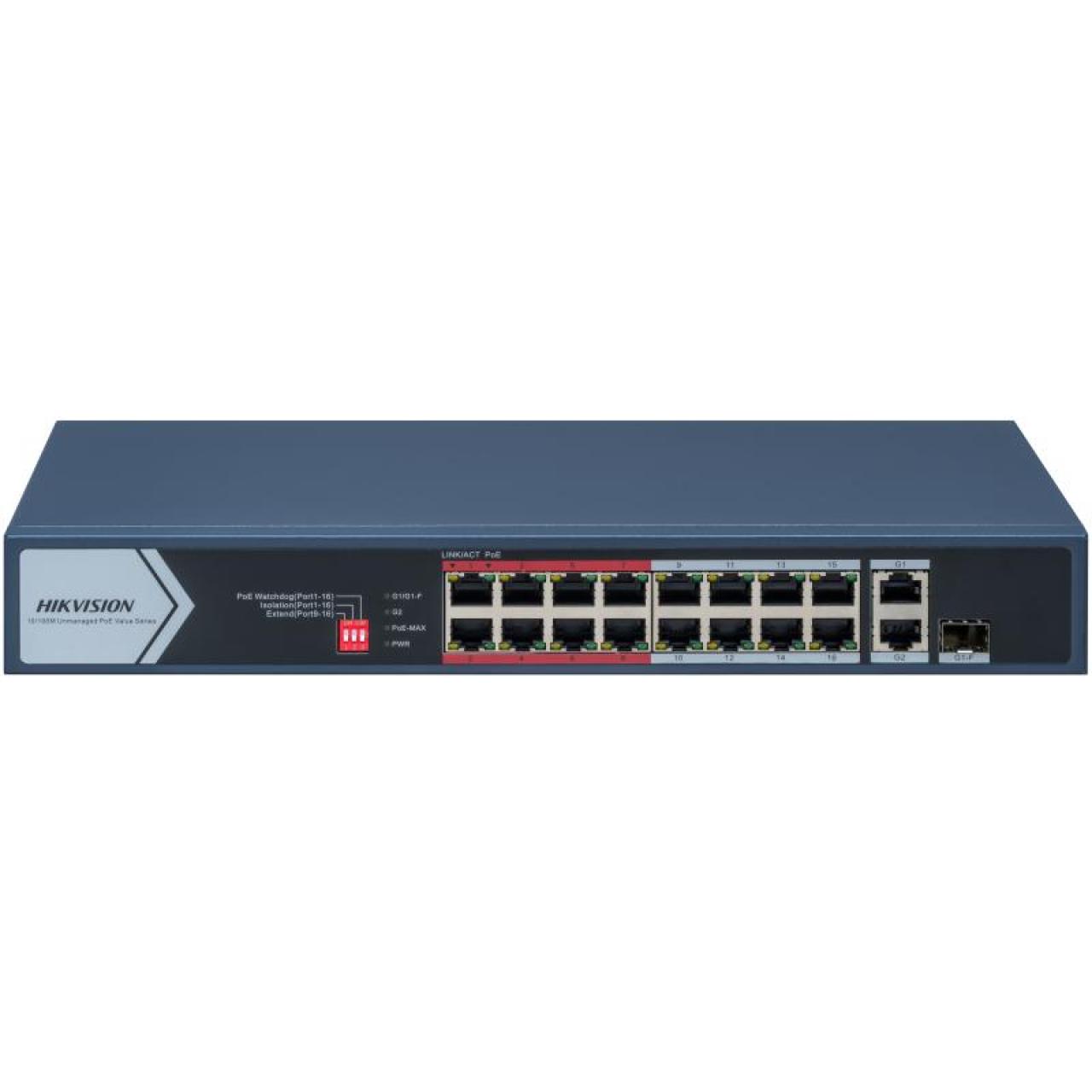

DS-3E0318P-E/M(C)(O-STD)
Hikvision
Contact support for the sales price
Shell
metal material
Net Weight
1.80 kg (4.00 lb)
Gross Weight
2.58 kg (5.69 lb)
Official data verified
Official specifications
- Product
- 16 Port Fast Ethernet Unmanaged PoE Switch
- Model
- DS-3E0318P-E/M(C)
- Shell
- metal material
- Net Weight
- 1.80 kg (4.00 lb)
- Gross Weight
- 2.58 kg (5.69 lb)
- Dimensions
- 335.0 mm × 44.5 mm × 175.8 mm
- Operating Temperature
- 0 °C to 45 °C
- Storage Temperature
- -40 °C to 85 °C
- Operating Humidity
- 5% to 95% (no condensation)
- Relative Humidity
- 5% to 95% (no condensation)
- Power Supply
- 100 to 240 VAC, 50/60 Hz, max. 2.5 A
- Max. Power Consumption
- 150 W
- Power Consumption in Idle
- 20 W
- Installation Mode
- desk-mounted or wall-mounted
- Surge Protection
- 6 kV
- Ports
- 16 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit combo port
- MAC address table
- 8 K
- Switching capacity
- 7.2 Gbps
- Packet forwarding rate
- 5.36 Mpps
- Internal Cache
- 4 Mbits
- PoE Standard
- IEEE 802.3af; IEEE 802.3at
- PoE Power Pin
- 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port
- ports 1 to 16
- Max. Port Power
- 30 W
- PoE Power Budget
- 130 W
- Long Range
- ports 9 to 16, up to 300 m
- Available Model
- DS-3E0318P-E/M(C)
