Ports
16 × Gigabit PoE RJ45 and 2 × Gigabit SFP
Working Modes
Standard mode and Extend mode
MAC address table
8 K
Official data verified
Official specifications

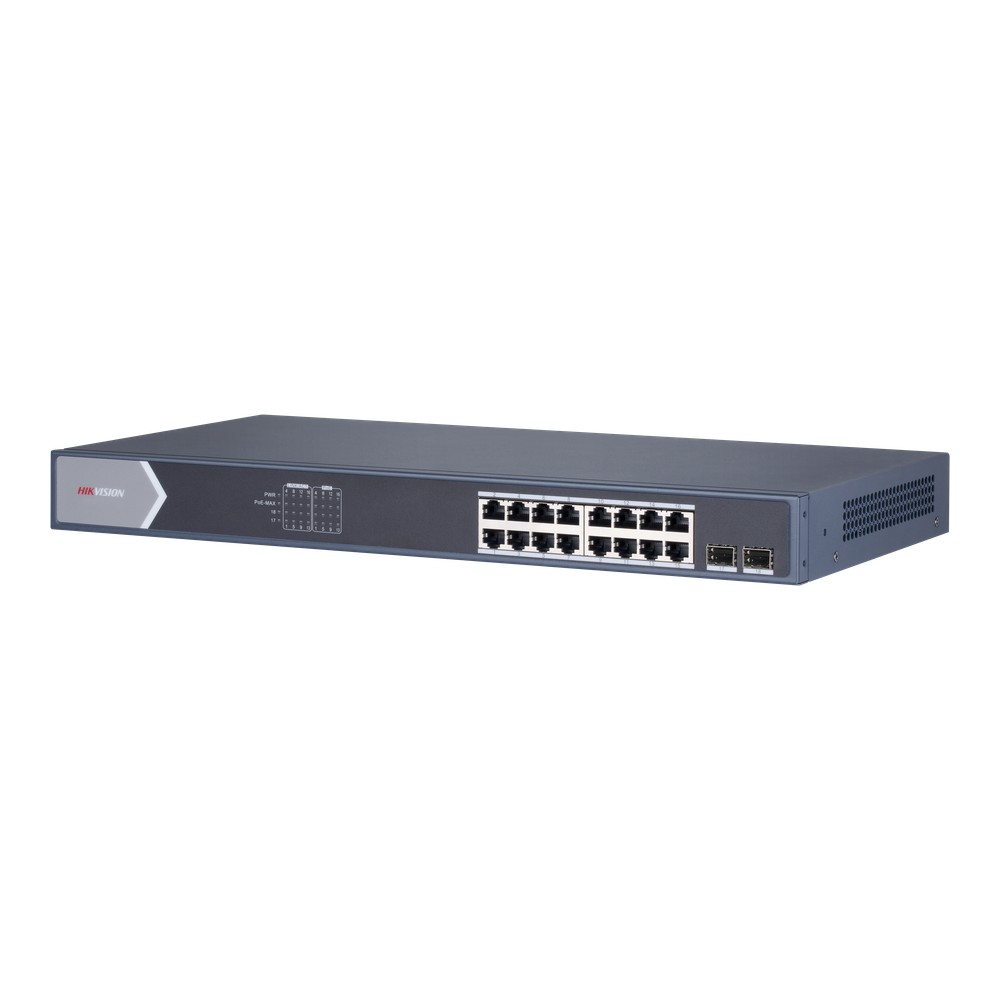

- Product
- Gigabit Web-Managed PoE Switch
- Model
- DS-3E1518P-E
- Ports
- 16 × Gigabit PoE RJ45 and 2 × Gigabit SFP
- Working Modes
- Standard mode and Extend mode
- MAC address table
- 8 K
- Switching capacity
- 36 Gbps
- Packet forwarding rate
- 26.784 Mpps
- Internal Cache
- 4.1 Mbits
- PoE Standard and Ports
- IEEE 802.3af/at on ports 1 to 16
- PoE Power
- Up to 30 W per port; 225 W total budget
- Long Range and Watchdog
- Up to 300 m; automatically detects and restarts unresponsive cameras
- Layer 2 Management
- 128 VLANs, STP/RSTP, SNMPv1/v2c, QoS, port mirroring, rate limiting and storm control
- Dimensions and Weight
- 440 × 220.8 × 44 mm; 2.735 kg net
- Power and Environment
- 100 to 240 VAC, maximum 4 A; 250 W maximum, 25 W idle; -10 °C to 55 °C; 5% to 95% RH
