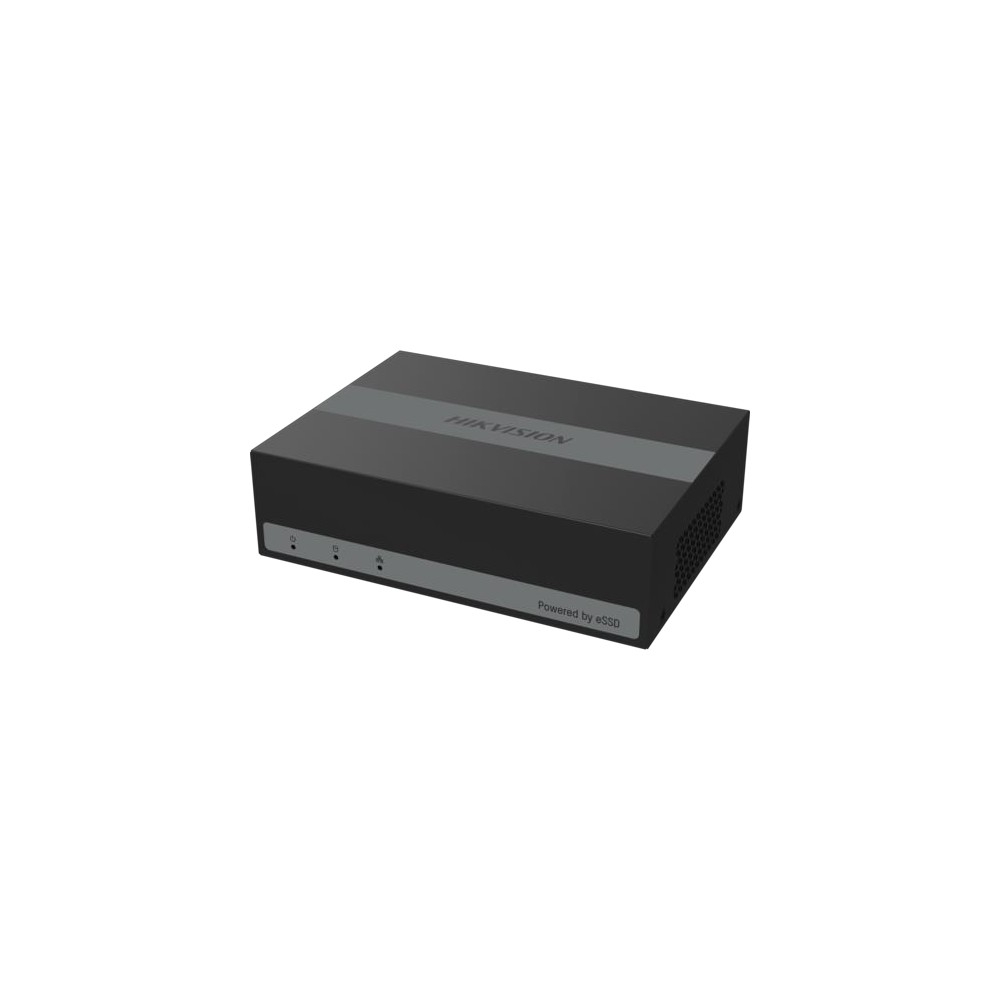

DS-E08HGHI-B(STD)(B)
Hikvision
Contact support for the sales price
Analog video input
8-ch BNC with coaxitron support
IP video input
2-ch, up to 5 MP, supporting H.265+/H.265 cameras
Video compression
H.265 Pro/H.265
Official data verified
Official specifications
- Product
- 8-ch 1080p Lite 1U H.265 eSSD DVR
- Model
- DS-E08HGHI-B(STD)(B)
- Analog video input
- 8-ch BNC with coaxitron support
- IP video input
- 2-ch, up to 5 MP, supporting H.265+/H.265 cameras
- Video compression
- H.265 Pro/H.265
- Encoding resolution
- 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
- Main stream
- up to 1080p Lite/720p/720p Lite/WD1/4CIF at 15 fps
- HDMI output
- up to 1920 × 1080/60 Hz
- VGA output
- up to 1920 × 1080/60 Hz
- Audio input
- 8-ch via coaxial cable
- Synchronous playback
- 8-ch
- Total bandwidth
- 72 Mbps; incoming IP bandwidth 8 Mbps
- Network interface
- 1 × RJ-45 10/100 Mbps
- Storage
- built-in 512 GB eSSD, 480 GB available
- USB interface
- 2 × USB 2.0
- Power supply
- 12 VDC, 1 A
- Consumption
- ≤ 6.2 W with eSSD
- Dimensions
- 151 × 121 × 46 mm
- Weight
- ≤ 0.5 kg with eSSD
