Official data verified

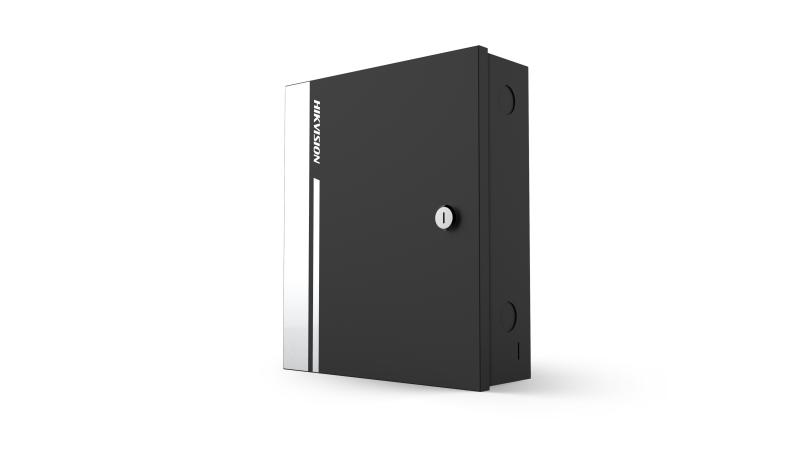

DS-K2801(O-STD)
Hikvision
Contact support for the sales price
Doors controlled
1
Processor
32-bit
Valid card storage
10,000 cards
Official data verified
Official specifications
- Product
- Value Series Card Access Contoller
- Model
- DS-K2801
- Doors controlled
- 1
- Processor
- 32-bit
- Valid card storage
- 10,000 cards
- Card record storage
- 50,000 records
- Uplink communication
- TCP/IP
- Downlink communication
- Wiegand W26/W34
- Accessible card readers
- 2 Wiegand readers
- Inputs
- 1 door sensor, 1 exit button, 1 case input
- Outputs
- 1 lock relay, 1 alarm relay
- Power supply
- 12 VDC
- Power consumption
- ≤ 3.5 W without load
- Operating temperature
- -20 °C to 65 °C
- Operating humidity
- 10% to 90% (non-condensing)
- Dimensions
- 285 mm × 237 mm × 69 mm
