Official data verified

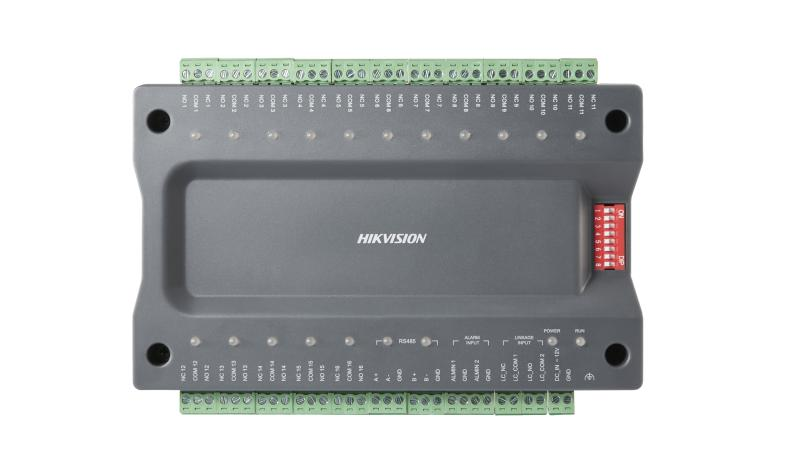

DS-K2M0016A(O-STD)
Hikvision
Contact support for the sales price
Processor
32-bit
RS-485 interfaces
2
Alarm inputs
2
Official data verified
Official specifications
- Product
- Elevator Sub-Controller
- Model
- DS-K2M0016A
- Processor
- 32-bit
- RS-485 interfaces
- 2
- Alarm inputs
- 2
- Relay outputs
- 16
- Linked sub-controllers
- up to 8 per DS-K2210 master controller
- Relay modes
- button, call elevator, auto button
- Power supply
- 12 VDC ± 15%
- Power consumption
- ≤ 2 W without load
- Operating temperature
- -40 °C to 70 °C
- Operating humidity
- 0% to 90% (no condensation)
- Dimensions
- 167 mm × 105 mm × 30 mm
- Installation
- guide rail
