Official data verified

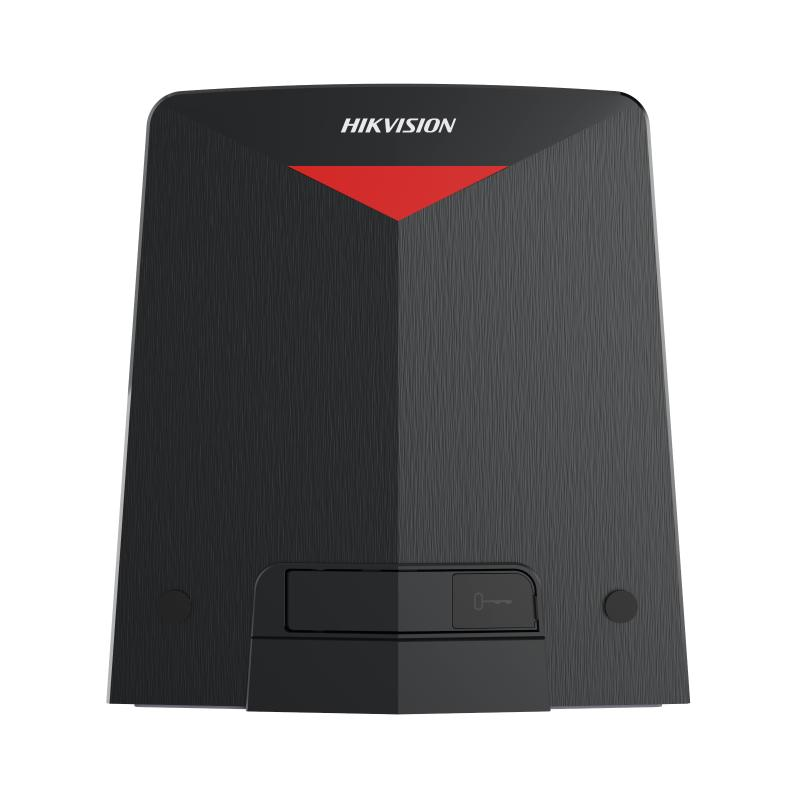

DS-K3GL606WX-WB(O-STD)
Hikvision
Contact support for the sales price
Motor
Brush motor
Remote keyfob capacity
3,000
MCBF
≥ 0.8 million times
Official data verified
Official specifications
- Product
- Sliding gate opener
- Model
- DS-K3GL606WX-WB
- Motor
- Brush motor
- Remote keyfob capacity
- 3,000
- MCBF
- ≥ 0.8 million times
- Gate mass - maximum
- 600 kg
- Open speed
- Up to 0.6 m/s at 17 kgf
- Battery
- 2 × 12 V 7 Ah
- Motor push force - starting
- 30 kgf
- Motor push force - rated
- 17 kgf
- Gate length - maximum
- 20 m
- Wired network
- 10/100 Mbps self-adaptive Ethernet
- Wi-Fi
- Supported
- Card capacity
- 250,000
- Event capacity
- 500,000
- Communication protocol
- TCP/IP, ISAPI
- Power consumption
- Standby 5 W; working 280 W; peak 400 W
- Power supply
- 100 to 240 VAC, 50/60 Hz, 4 A
- Working temperature
- -15 °C to 55 °C (5 °F to 131 °F)
- Working humidity
- 10% to 95% (no condensing)
- Protection
- IPX5
- Dimensions
- 309.72 mm × 225.66 mm × 330 mm (without package)
- Weight
- Net: 7.45 kg (16.3 lb) Gross: 10 kg (22 lb)
