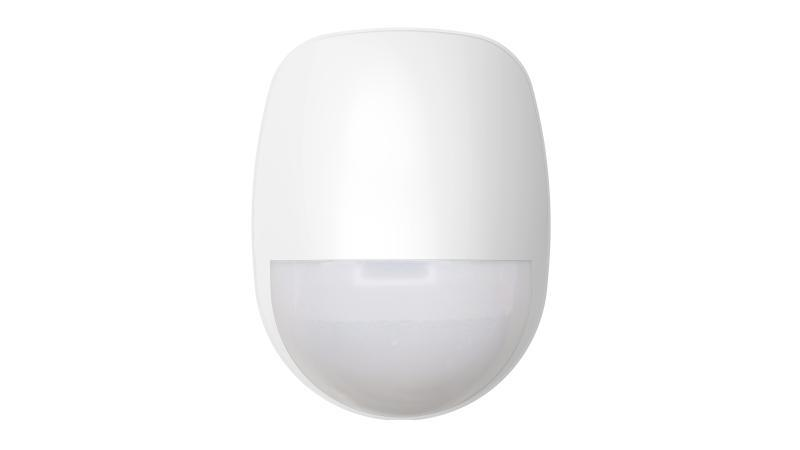

DS-PDP18-EG2(B)
Hikvision
Contact support for the sales price
Detection range
18 m
Detection angle
85.9°
Velocity range
0.3 to 2 m/s
Official data verified
Official specifications
- Product
- Wired PIR Detector
- Model
- DS-PDP18-EG2(B)
- Detection range
- 18 m
- Detection angle
- 85.9°
- Velocity range
- 0.3 to 2 m/s
- Sensitivity adjustment
- High, auto, low
- Pet immunity
- High 5 kg; auto 10 kg; low 15 kg
- White light filter
- 6500 lux
- Tamper-proof
- Front
- Indicator
- Blue (alarm)
- Power supply
- 9 to 16 VDC (standard 12 VDC)
- Power consumption
- 12 mA max.
- Application scenario
- Indoor
- Storage temperature
- -20 °C to 60 °C (-4 °F to 140 °F)
- Operation temperature
- -10 °C to 55 °C (14 °F to 131 °F)
- Operation humidity
- 10% to 90%
- Installation height
- 1.8 to 2.4 m
- Bracket
- Optional wall and ceiling accessory
- Shell material
- PC+ABS
- Dimensions
- 65.4 mm × 86.8 mm × 45.5 mm
- Weight
- 68g
