DS-PHA64-Kit-WB(B)(O-STD)
Hikvision
Contact support for the sales price
Kit contents
DS-PHA64-LP(B) × 1; DS-PK1-LRT-HWB × 1; DS-PD1-MC-WS × 1; DS-PDP18-EG2(B) × 2; DS-PKF1-WB × 1; DS-PT-M1 × 2
Zones
64 (8 on-board zones, max. 8 wired PIRCAM)
Areas
32
Official data verified
Official specifications
- Product

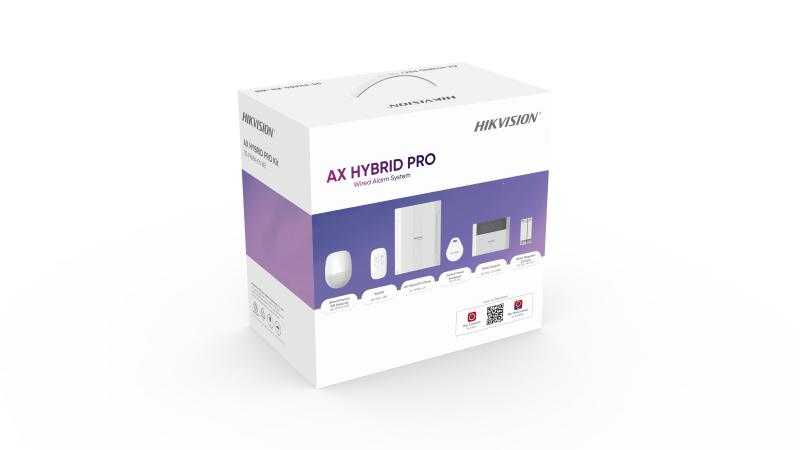

- AX Hybrid Pro Kit (433 MHz)
- Model
- DS-PHA64-Kit-WB(B)
- Kit contents
- DS-PHA64-LP(B) × 1; DS-PK1-LRT-HWB × 1; DS-PD1-MC-WS × 1; DS-PDP18-EG2(B) × 2; DS-PKF1-WB × 1; DS-PT-M1 × 2
- Zones
- 64 (8 on-board zones, max. 8 wired PIRCAM)
- Areas
- 32
- Users
- 1 installer, 1 administrator, 62 operators
- Onboard video clips
- 4
- Alarm inputs
- 64 (including 8 on-board zones)
- Alarm outputs
- 64 (including 2 relay outputs and 2 I/O outputs on board)
- Wi-Fi
- IEEE 802.11b/g/n, 2.4 GHz
- Network interface
- 1 × RJ-45 10/100 Mbps Ethernet
- Battery type
- 12 V 7 Ah lead-acid battery (not included by default)
- Battery life
- Up to 36 hours
- Operation temperature
- -10 °C to 40 °C
- Weight
- 997 g
