Official data verified

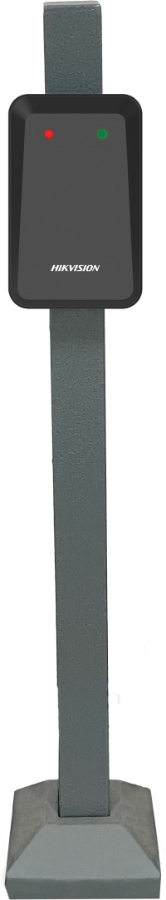

DS-TMG035(Trigger Radar)
Hikvision
Contact support for the sales price
Transmitting Frequency
79 GHz
Beamwidth
Vertical 10°, Horizontal 38°
Response Time
50 ms
Official data verified
Official specifications
- Product
- Trigger Radar
- Model
- DS-TMG035(Trigger Radar)
- Transmitting Frequency
- 79 GHz
- Beamwidth
- Vertical 10°, Horizontal 38°
- Response Time
- 50 ms
- Trigger Distance
- 0.1 to 6 m (adjustable)
- Detection Area
- Horizontal width: 0 to 2 m (adjustable)
- Detection Target
- Trigger Mode: Vehicle/Person; Anti-fall Mode: Vehicle/Person
- Online Debug
- Serial port/Bluetooth
- Online Upgrade
- Serial port/Bluetooth
- Transmitting Power
- ≤ 10 mW
- Vehicle Following Distance
- 0.5 to 2 m (adjustable)
- Working Temperature and Humidity
- -40 °C to +85 °C
- Working Current
- < 0.25 A
- Working Voltage
- 9 to 32 VDC (with power adapter)
- Power Consumption
- < 3 W
- Dimensions
- 96 mm × 60 mm × 29 mm
- Protection
- IP67
- Weight (with Package)
- 1.1 kg (2.43 lb.)
