Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ports
8 × 10/100 Base-T PoE ports and 2 × 10/100 Base-T uplink ports
Switching capacity
2 Gbps
Official data verified
Official specifications
- Product

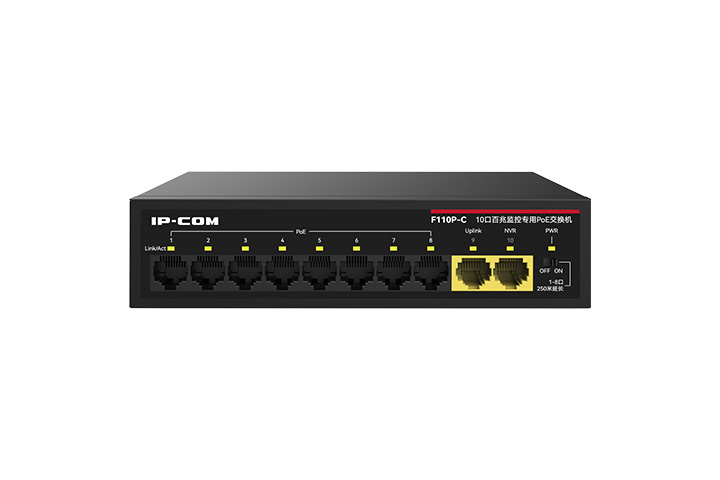

- 10-Port Fast Ethernet Surveillance PoE Switch
- Model
- F110P-C
- Standard
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Ports
- 8 × 10/100 Base-T PoE ports and 2 × 10/100 Base-T uplink ports
- Switching capacity
- 2 Gbps
- Packet forwarding rate
- 1.49 Mpps
- MAC address table
- 1 K
- PoE
- ports 1-8 support IEEE 802.3af; total PoE output ≤ 70 W
- Power input
- 220 VAC, 50 Hz, 1 A
- Power Consumption
- total ≤ 80 W
- Dimensions
- 175 × 127 × 43 mm
- Transmission
- extension mode up to 250 m; ports 1-8 are isolated and connect to ports 9-10
- Operating conditions
- 0 °C to 45 °C; 10% to 90% RH, non-condensing
- Feature
- hardware version v2.0, store-and-forward, 4 kV lightning protection
