Function
converts 100 Mbps electrical Ethernet and optical signals
Ethernet Interface
1 × 100 Mbps RJ45 port
Optical Interface
1 × 100 Mbps SC fiber port
Official data verified
Official specifications
- Product

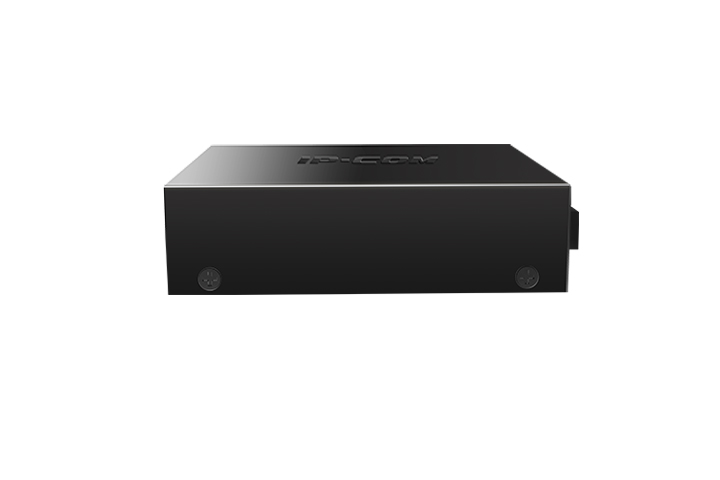

- 100 Mbps single-mode single-fiber media converter
- Model
- FC100A
- Function
- converts 100 Mbps electrical Ethernet and optical signals
- Ethernet Interface
- 1 × 100 Mbps RJ45 port
- Optical Interface
- 1 × 100 Mbps SC fiber port
- Fiber Type
- single-mode single-fiber
- Transmission Distance
- up to 20 km
- Wavelengths
- 1550 nm transmit and 1310 nm receive
- Power Supply
- 220 VAC 50/60 Hz input; 5 VDC / 0.6 A output
- Dimensions
- 95 × 72 × 26 mm
- Lightning Protection
- 6 kV
- Operating conditions
- 0 °C to 45 °C; 10% to 90% RH, non-condensing
- Storage Conditions
- -40 °C to 70 °C; 5% to 90% RH, non-condensing
- Pairing
- FC100A must be used together with FC100B
