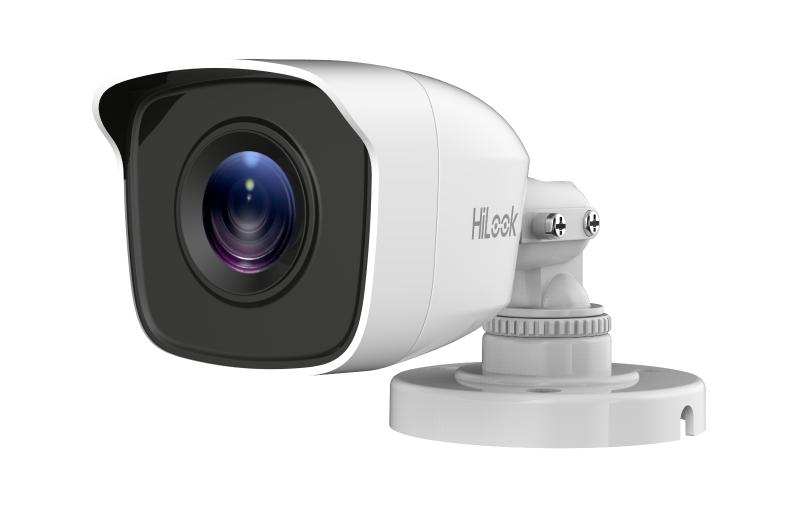

THC-B120-PC(3.6mm)(HiLook STD)
HiLook
Contact support for the sales price
Image Sensor
2 MP CMOS image sensor
Max resolution
1920 (H) × 1080 (V)
Minimum illumination
0.02 Lux@(F2.0, AGC ON), 0 Lux with IR
Official data verified
Official specifications
- Product
- 2 MP Fixed Mini Bullet Camera
- Model
- THC-B120-PC(3.6mm)(HiLook STD)
- Image Sensor
- 2 MP CMOS image sensor
- Max resolution
- 1920 (H) × 1080 (V)
- Minimum illumination
- 0.02 Lux@(F2.0, AGC ON), 0 Lux with IR
- Lens Type
- Fixed focal lens, 2.8 mm and 3.6 mm optional
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
- Supplement Light Type
- IR
- Supplement Light Range
- Up to 20 m
- Frame rate
- PAL 1080p at 25 fps; NTSC 1080p at 30 fps
- Wide Dynamic Range (WDR)
- Digital WDR
- Video Output
- Switchable TVI/AHD/CVI/CVBS
- Power
- 12 VDC ±15%, Max. 2.1 W
- Material
- Plastic
- Operating Condition
- -40 °C to 60 °C; humidity 90% or less (non-condensing)
- Dimensions
- 165 mm × 62 mm × 58 mm (6.50" × 2.44" × 2.28")
- Weight
- 400 g (0.88 lb.)
- Protection
- IP66
