Official data verified
THC-T120-PC(2.8mm)(HiLook STD)
HiLook
Contact support for the sales price
Image Sensor
2 MP CMOS image sensor
Resolution
1920 (H) × 1080 (V)
Frame rate
PAL 1080p at 25 fps; NTSC 1080p at 30 fps
Official data verified
Official specifications
- Product

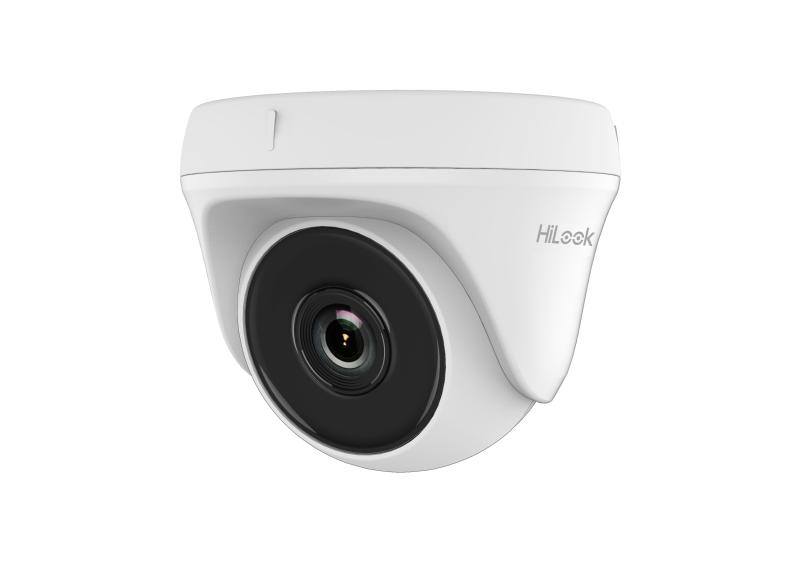

- 2 MP Indoor Fixed Turret Camera
- Model
- THC-T120-PC(2.8mm)(HiLook STD)
- Image Sensor
- 2 MP CMOS image sensor
- Resolution
- 1920 (H) × 1080 (V)
- Frame rate
- PAL 1080p at 25 fps; NTSC 1080p at 30 fps
- Minimum illumination
- 0.02 Lux@(F2.0, AGC ON), 0 Lux with IR
- Lens
- 2.8 mm and 3.6 mm fixed lens options
- Focal Length & FOV
- 2.8 mm, horizontal 96.5°, vertical 48.9°, diagonal 120.5°; 3.6 mm, horizontal 76.9°, vertical 40.6°, diagonal 92.0°
- Video Output
- 1 HD analog output; switchable TVI/AHD/CVI/CVBS
- Digital wide dynamic range
- Supported
- IR range
- Up to 20 m
- Power Supply
- 12 VDC ± 15%
- Power Consumption
- Max. 2.1 W
- Material
- Plastic
- Operating conditions
- -40 °C to 60 °C; humidity 90% or less (non-condensing)
- Dimensions
- Ø 85.4 mm × 76.12 mm ( Ø 3.38" × 2.67")
- Weight
- 130 g (0.29 lb.)
